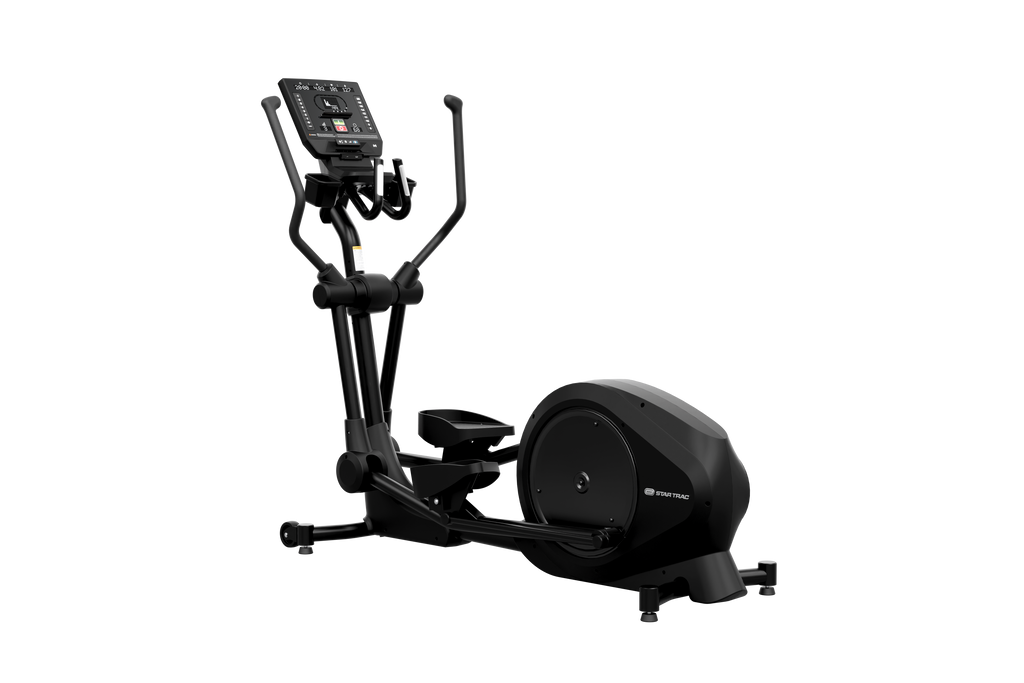

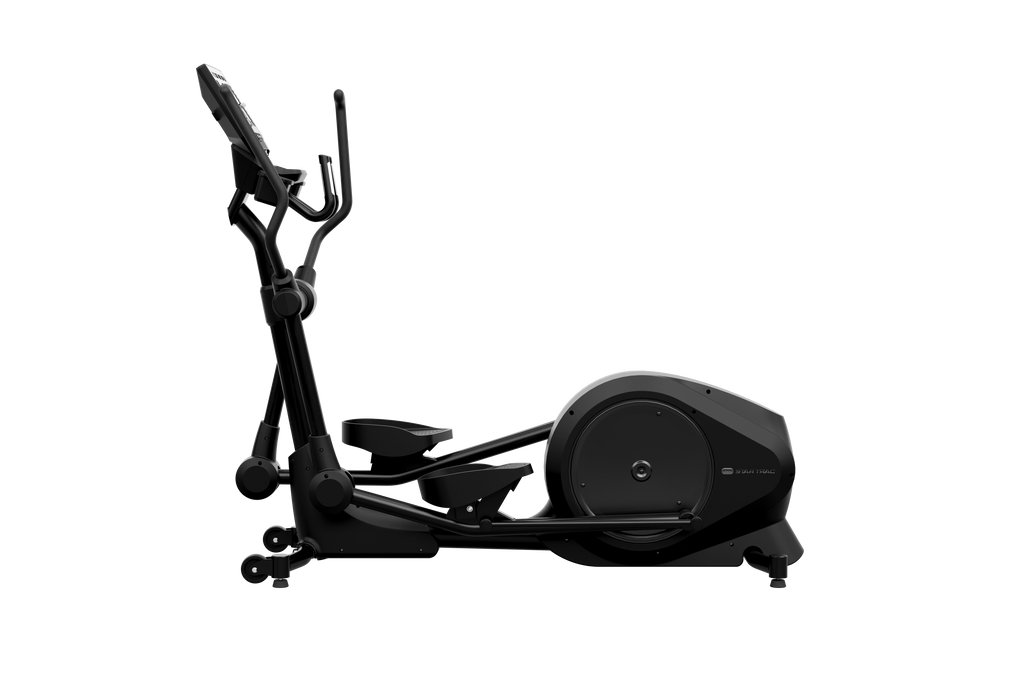

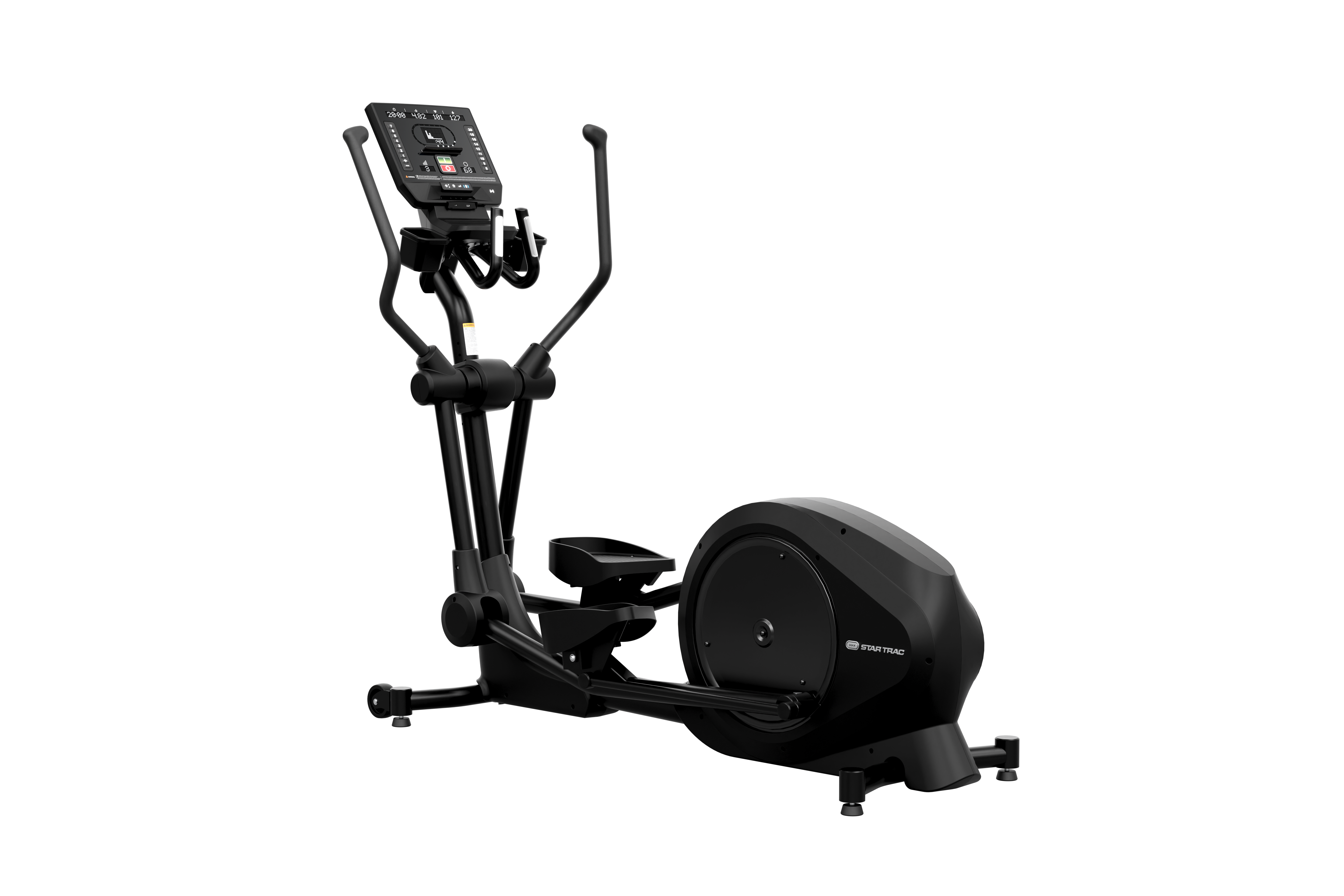

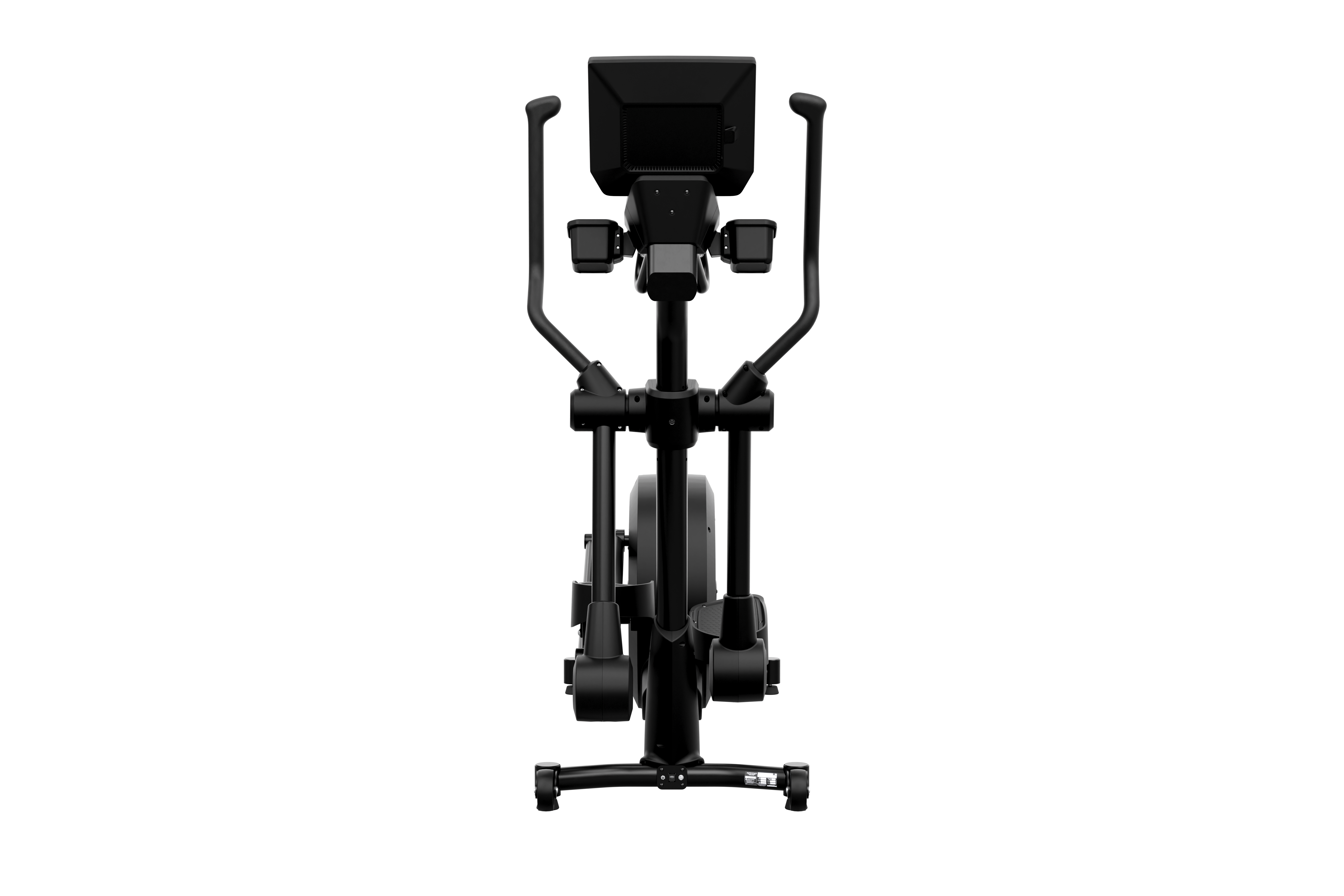

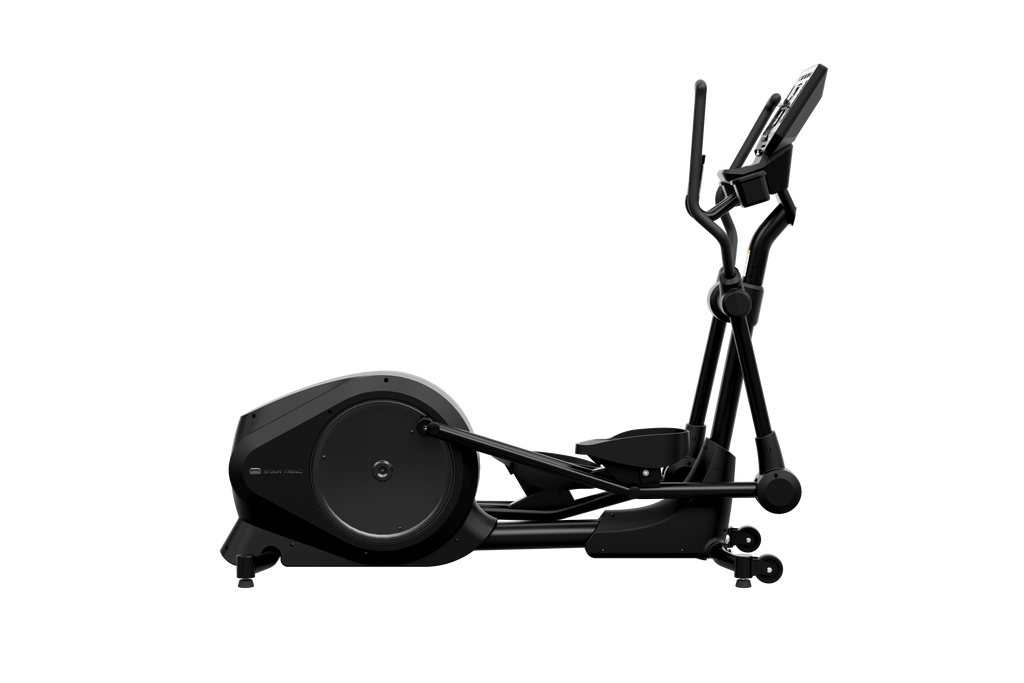

Elliptical training has become second only to treadmill training in facilities across the globe and it has become one of the most important cardio categories in the eyes of many clients. When designing our Star Trac 8 Series Rear Drive Elliptical, we wanted to create a comfortable and natural stride pattern, while offering user-centric safety features and the industry’s best entertainment solutions. With the availability of the OpenHub console, this classic piece of cardio equipment becomes the complete package, offering users both comfort and connectivity.
| Category |
Feature |
| Display |
LED or 16in (40.5cm) Touchscreen |
| Stride Length |
Fixed, 18 in (48 cm) |
| Step-up Height |
11 in (28 cm) |
| Movement Arms |
Articulating |
| Heart Rate Monitoring |
Contact & telemetric HR |
| Wireless Phone Charging |
Yes |
| Max User Weight |
350 lbs (159 kg) |
| Drive System |
Rear Drive |
| Resistance System |
Alternator |
| Resistance Levels |
20 |
| Additional Features |
Articulating pedals |
| Start-up Watts |
20 |
| Power Requirements |
Self-generating LED display. Touchscreen display and LED w/ PVS options require 12V/5 Amp power supply |
| Frame Material |
Powder Coated Steel Frame |
| Standard Color |
Matte Black (-60 black) |
| Customizable |
Yes, frame color is customizable. Paint color approval required |
| Assembled Dimensions |
86 x 36 x 73 in (219 x 91 x 185 cm) |
| Product Weight |
320 lbs (145 kg) |
| Shipping Dimensions |
83.9 x 29.3 x 52.9 in (213.2 x 74.5 x 134.4 cm) |
| Shipping Weight |
399.1 lbs (181 kg) |
| SKU - LED Display |
9-6180-8RDE-LED-60 |
| SKU - 16” Touchscreen Display |
9-6180-8RDE-16in-60 |
